Alpine SBT-S10V Truck Enclosure with 10" SWT Subwoofer.    The SBT-S10V is engineered to fit and sound great in most truck applications without sacrificing quality and big output.


More Bass, Less Space

With a compact wedge-style design and shallow mount, the SBT-S10V (2-ohm system) is a perfect fit for truck applications, with a design that works in small spaces.


Two-Way Alpine Logo Flexibility

The Alpine logos on the front and the bottom offer convenient visibility options when mounted horizontally or vertically.


Big Output in a Compact Package with 4 Unique Alpine Subwoofer Technologies.


Radial Vented VC Heat Sink & Airflow Management System

Actively manages voice coil temperatures by forcing air directly across the heat sink system.


FEA Optimized Dual-Sided Machined CRC Motor Structure

Creates a symmetrical magnetic field with evenly distributed flux density to greatly reduce distortion, while further improving power handling and output.


FEA Optimized Injection Molded TPE Spider with Pass-Through Gap Design

Provides the mechanical clearance needed for over 50mm of peak-to-peak excursion, unleashing massive output potential from a small package


FEA Optimized HAMR Surround

The High-Amplitude Multi Roll Surround Design allows for extreme excursions without sacrificing valuable cone area. FEA Optimized for linearity and made with injection-molded Santoprene ®, the HAMR surround is a key part of the suspension system that provides accurate, distortion-free control at extreme excursions.

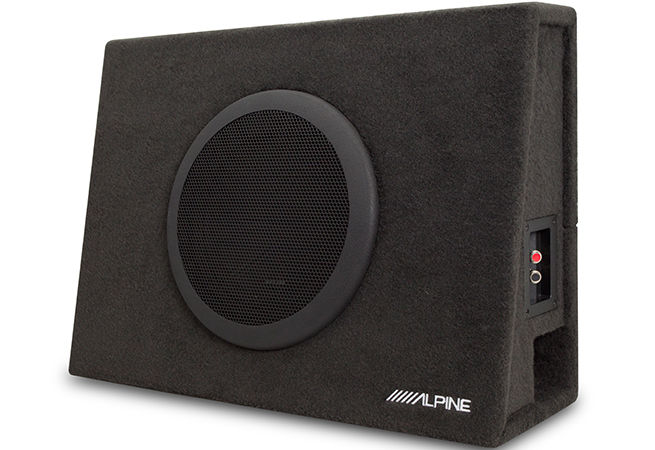

Alpine SBT-S10V Truck Enclosure with 10" SWT Subwoofer


    • Ported enclosure with one SWT Series 10" woofer
    • 3/8" medium-density fiberboard construction (3/4" MDF front baffle)
    • 2-ohm total impedance
    • Maximum power: 350 watts RMS (1,000 watts peak power)
    • Frequency response: 28-200 Hz
    • Xmax: 11mm
    • 21-7/8"W x 15-1/2"H x 7-1/2"D1 x 4-1/4"D2

    What's in the box:

    • Alpine SBT-S10V owner's manual
    • Ported enclosure loaded with one 10" woofer
    • 2 Mounting plates
    • Six 1/2" Self-tapping screws
    • Owner's manual (English/ French/ Spanish)
    • Installation notes
    • Warranty information
    • On-line product registration information

    Woofer Size (inches) 10
    Speakers Per Box 1
    Woofer Material Pulp-Kevlar
    Enclosure Type Ported
    Color Gray
    Pieces in System 1
    Width (inches) 21-7/8
    Height (inches) 15-1/2
    Depth (inches) 7-1/2
    Connector Type Spring post
    Frequency Response 30-200 Hz
    Power Range (Watts RMS) 350
    Maximum Wattage 1000
    Sensitivity 85 dB
    Impedance 2 ohms
    Parts Warranty 1 Year
    Labor Warranty 1 Year
