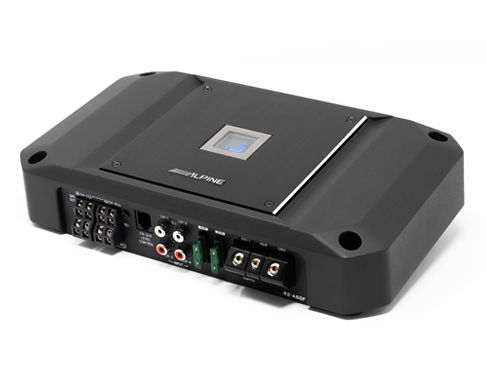

Alpine R2-A60F Next-Generation R-Series 4-Channel Amplifier. Experience the impressive power and exceptional performance of the Next-Gen R-Series R2-A60F 4-Channel Amplifier, now certified for Hi-Res Audio Playback.
HI-RES CERTIFIED
The Next-Generation R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce up to 45kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
REDUCED FOOTPRINT
The R2-A60F features a reduced footprint that’s 15% smaller than the previous model (R-A60F), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.
Alpine R2-A60F Next-Generation R-Series 4-Channel Amplifier
FEATURES
- Hi-Res Audio Certified (Up to 45kHz)
- 4-Channel Amplifier
- Alpine’s Class D Amplifier Circuit
- Reduced Footprint (15% smaller compared to the previous R-A60F model)
- One-Sided Terminal Layout
- Top Panel Sound Controls
- Integrated Mounting Feet for Simple Installation
- Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)
What's in the Box:
- (x1) R2-A60F 4-Channel Amplifier
- Owner’s Manual
- “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
- (x4) Screws for amplifier mounting to the vehicle
- (x3) Allen wrench for amplifier connection and installation (2mm, 2.5mm, 3mm)
- Alpine Registration Card
- Alpine Limited Warranty Sheet
- Installation Guide
TECH SPECS
- Dimensions: 11.1” W x 2.17” H x 6.5” D
- Weight: 7 lbs, 3 oz
- Power Rating: 14.4V, ≤ 1% THD +N
- Power Output: 100W x 4 @ 4Ω, 150W x 2 @ 2Ω
- Bridged Power: 300W x 2 @ 4Ω
- S/N Ratio: >80dB
- Frequency Response: 10Hz – 45kHz
- Damping Factor: >100
- CTA-2006-D Certification
