Alpine PSS-SX01 Weather-Resistant Side-by-Side Sound System
Alpine PSS-SX01 Weather-Resistant Side-by-Side Sound System.   Take your Side-by-Side beyond utility with a complete sound system designed to play your music and add excitement to your drive.

TAKE YOUR SIDE-BY-SIDE BEYOND UTILITY

This complete sound system combines the premium sound you’ve come to expect from Alpine as well as a unique design that will complement the look of your Side-by-Side. As an easy add-on for any existing Side-by-Side with 1.5"-2" rails, the PSS-SX01 includes everything you need for an exciting music experience, including two enclosed 6.5-inch speakers, a grille-mounted, 1-inch teteron dome tweeter, and one 4-channel amplifier all weather-resistant against the elements.

MUSIC ON YOUR ADVENTURES

Stream music directly from your smartphone without a radio or head unit source with the included Bluetooth® Adaptor. The module allows for quick and easy pairing to your smartphone so you can listen to your music during your drive.



Alpine PSS-SX01 Weather-Resistant Side-by-Side Sound System

SKU: ALPPSS-SX01
$749.95Price

  • FEATURES

    What's Included:

    • 6.5” 2-Way Mid Bass Drivers

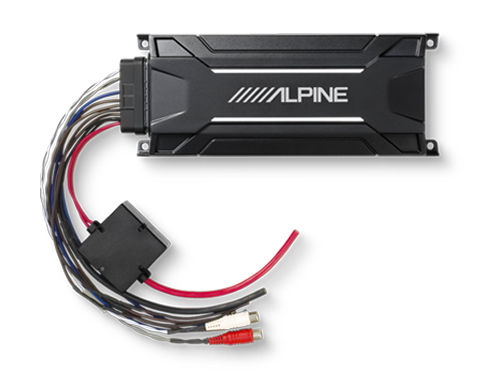

    • KTA-30FW 4-Channel Weather-Resistant Tough Power Pack Amplifier
    • KCX-BT01 Weather-Resistant Bluetooth® Adaptor
    • ASA 978 B+ Fiberglass Speaker Pod with Folding-Style Clamp



    *Additional speaker and power wire may be required for installation.



    Speakers:

    • Enclosed 6.5” 2-Way Speakers
    • 1” Teteron Dome Tweeter
    • Rated IP55 Weather-Resistant
    • Steel Frame



    Amplifier:

    • Alpine’s Class D Amplifier with Dynamic Peak Power (DPP)
    • 4-Channel Power Pack Amplifier
    • Rated IP66 Weather-Resistant



    Bluetooth Adaptor:

    • 12V Weather-Resistant Bluetooth® Adaptor
    • Complete Wireless Connections Bluetooth® 4.0
    • Built-In Line Driver for 3x Voltage Output
    • Music Signal Remote Trigger Output



    Speaker Pods:

    • ASA 978 B+ Fiberglass
    • Pro-Style Folding Style Clamp that will fit 1.5"-2" Rails.
    • Rotating Coated Aluminum Base
    • 90-Degree Plug with 20AWG Pigtail
    • Rated IP65 Weather-Resistant

  • TECH SPECS

    Speakers:

    • 90W RMS
    • 225W Peak Power Handling
    • Nominal Impedance 4Ω
    • 50-22kHz Frequency Response
    • Material: Santoprene
    • 25mm voice coil



    Amplifier:

    • CTA-2006-B Compliant
    • 75W RMS x 4 (2Ω/4Ω, 14.4V, 1% THD+N)
    • 150W DPP x 4 (2Ω/4Ω, 14.4V, 1% THD+N)
    • Amplifier 2ch/4ch input (selectable)
    • 85dB S/N (ref. 1W into 4Ω)
    • >0.01% THD (ref. 1W into 4Ω)
    • 20-20kHz Frequency response (+/- 1dB)
    • Speaker/RCA inputs (Selectable, High range=0.5-10V, Low range=0.2-4V)
    • Sound Control: Crossovers: Off/Hp/Lp, Fc=50-400Hz @ -12dB/Oct. (variable) Input gain settings (variable); 2ch/4ch input (selectable)
